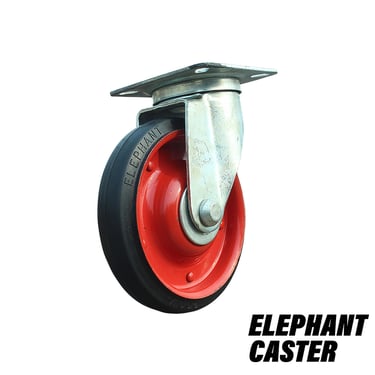

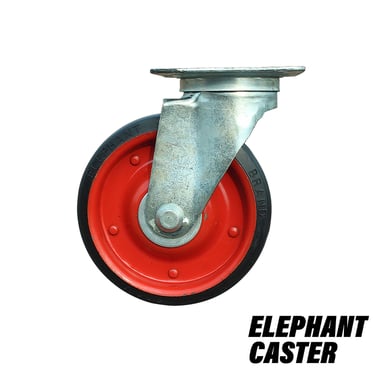

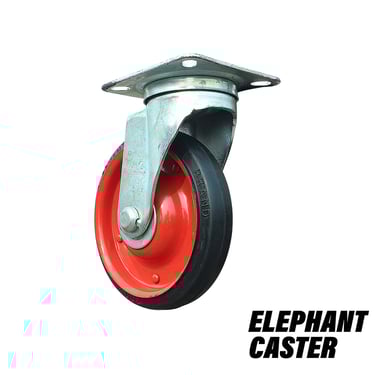

8 inch wheel diameter rubber wheel
with swivel caster
SPECIFICATION
SWIVEL CASTER
WHEEL
1. Sheet Metal Thickness 3.5mm
2. Double ball race swivel bearing
3. Hot Forged Kingpin
4. Load Capacity 800kg on four Casters
1. Solid Rubber with high hardness to hold heavy load. High tear strength and abrasion resistance.
2. Deep Groove Ball bearings (6204) in wheel hub.
3. Rubber molded on 2.0mm sheet metal rim.
DESCRIPTION
This is our 200mm in diameter rubber molded wheel with swivel caster having load capacity of 800kg. Swivel caster has double ball race bearing to maneuver heavy load with ease as well as to absorb side impacts. Sheet metal thickness of caster is 09 gauge (3.5mm). Kingpin head is hot forged to get maximum head of kingpin in order to hold swivel caster tightly when use under harsh conditions.
Pin used in wheel hub is cold forged with lock head and with limited threading. Benefit of limited thread is that once nut is tightened it will not loose on it own. Diameter of pin is 20mm.
Rubber is molded on 14guage (2.0mm) sheet metal rim. Our rubber is specially formulated to move heavy load, high tear strength and high abrasion resistance. Specialty of rubber wheel is that they are noiseless, absorb shocks (preventing rattling of goods loaded on trolley) and are non-marking on floor (floor protection).
As impact forces and jerks are absorb by rubber rather than transferring to bearings and caster. This means rubber wheels also prevent caster from damaging by sudden impacts hence increase the overall Caster Wheel life.

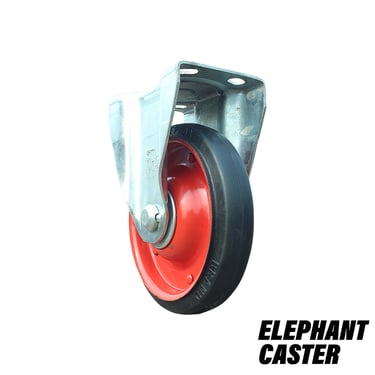

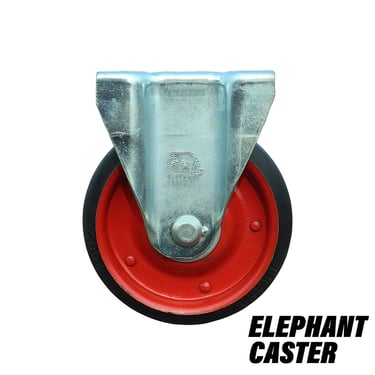

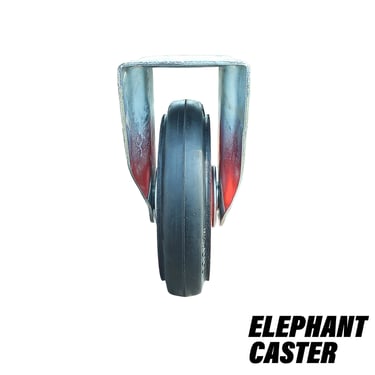

8 inch wheel diameter rubber wheel
with RIGID caster
SPECIFICATION
RIGID CASTER
WHEEL
1. Sheet Metal Thickness 3.5mm
2. Load Capacity 800kg on four Casters
1. Solid Rubber with high hardness to hold heavy load. High tear strength and abrasion resistance.
2. Deep Groove Ball bearings (6204) in wheel hub.
3. Rubber molded on 2.0mm sheet metal rim.
DESCRIPTION
This is our 200mm in diameter rubber molded wheel with rigid caster having load capacity of 800kg. Rigid caster has been designed and press formed to get maximum strength out of sheet metal. Sheet metal thickness of caster is 09 gauge (3.5mm).
Pin used in wheel hub is cold forged with lock head and with limited threading. Benefit of limited thread is that once nut is tightened it will not loose on it own. Diameter of pin is 20mm.
Rubber is molded on 14guage (2.0mm) sheet metal rim. Our rubber is specially formulated to move heavy load, high tear strength and high abrasion resistance. Specialty of rubber wheel is that they are noiseless, absorb shocks (preventing rattling of goods loaded on trolley) and are non-marking on floor (floor protection).
As impact forces and jerks are absorb by rubber rather than transferring to bearings and caster. This means rubber wheels also prevent caster from damaging by sudden impacts hence increase the overall Caster Wheel life.

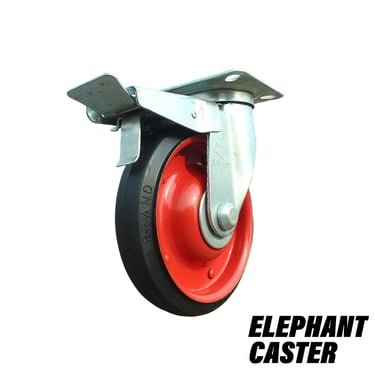

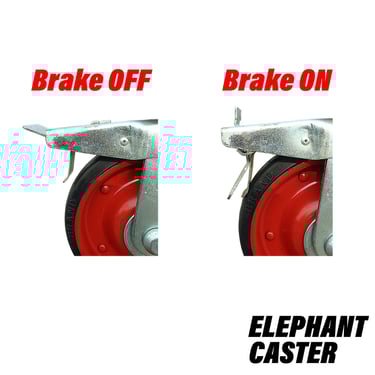

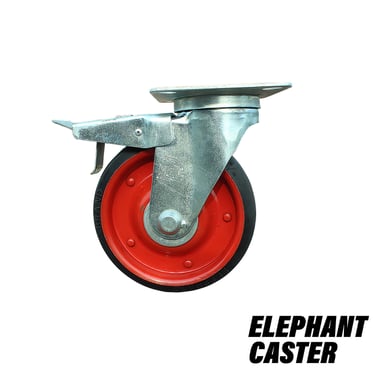

8 inch wheel diameter rubber wheel
with swivel caster (brake)
SPECIFICATION
SWIVEL CASTER (BRAKE)
WHEEL
1. Sheet Metal Thickness 3.5mm
2. Double ball race swivel bearing
3. Hot Forged Kingpin
4. Load Capacity 800kg on four Casters
1. Solid Rubber with high hardness to hold heavy load. High tear strength and abrasion resistance.
2. Deep Groove Ball bearings (6204) in wheel hub.
3. Rubber molded on 2.0mm sheet metal rim.
DESCRIPTION
This is our 200mm in diameter rubber molded wheel with swivel caster having load capacity of 800kg. Swivel caster has double ball race bearing to maneuver heavy load with ease as well as to absorb side impacts. Sheet metal thickness of caster is 09 gauge (3.5mm). Kingpin head is hot forged to get maximum head of kingpin in order to hold swivel caster tightly when use under harsh conditions.
Pin used in wheel hub is cold forged with lock head and with limited threading. Benefit of limited thread is that once nut is tightened it will not loose on it own. Diameter of pin is 20mm.
Rubber is molded on 14guage (2.0mm) sheet metal rim. Our rubber is specially formulated to move heavy load, high tear strength and high abrasion resistance. Specialty of rubber wheel is that they are noiseless, absorb shocks (preventing rattling of goods loaded on trolley) and are non-marking on floor (floor protection).
As impact forces and jerks are absorb by rubber rather than transferring to bearings and caster. This means rubber wheels also prevent caster from damaging by sudden impacts hence increase the overall Caster Wheel life.
RUBBER FORMULATION
WE CAN FORMULATE WHEEL RUBBER COMPOSITION ACCORDING TO CUSTOMER NEED TO HAVE FOLLOWING PROPERTIES.
1. HEAT-RESISTANT
2. OIL RESISTANT
3. EXTRA HEAVY LOAD CARRYING CAPABILITY
4. HIGH ABRASION RESISTANT
5. HIGH TEAR RESISTANCE.
